Equipment | HT 500

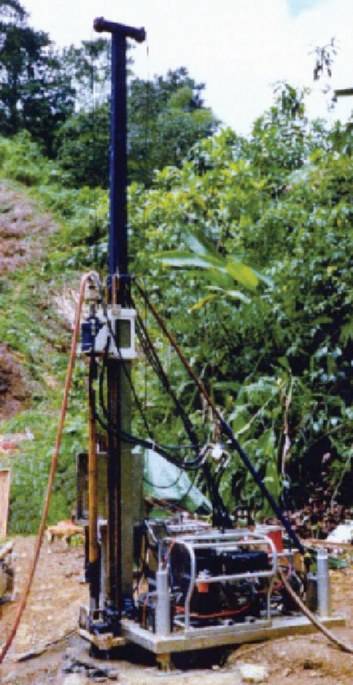

The HT-500 series drill was specifically designed and manufactured for use by Foundex, in order to meet our requirements for specialized projects and accessibility to remote drilling sites. The HT-500 is our smallest top drive drill and has been utilized in a wide variety of projects. It is very versatile and also can be equipped with an electric power pack for indoor operations.

This drill is very easily dismantled and transported by helicopter and requires minimal time to assemble and operate. The drill, although compact, has field proven itself many times and has always met or exceeded our expectations. We carry an extensive inventory of tooling and parts to support all operations of the HT-500 and to meet your project requirements.


Equipment Brief

  • ​Mud Rotary, Air Rotary, Wireline Coring BQ to PQ

  • Odex and Down Hole Hammer Drilling

  • Geotechnical Investigations and Sampling

  • Grouting, Anchors and Piling

  • Water Wells and Environmental Wells

  • Offshore Marine Drilling on Small Platforms

  • Mineral Exploration,

  • Heliportable


Specifications

  • 40 HP Diesel Engine

  • Head Torque - 0 to 2,000 ft./lbs

  • Head RPM - 0 to 800

  • Head Travel - 7 feet

  • Pull Down Pressure - 6,000 lbs

  • Pullback Pressure - 8,000 lbs

  • Main Winch - 2,000 lbs

  • Wireline Winch - 1,000 lbs


​​​Rig Capacity

  • 6” Rotary Hole to 100 feet

  • 4.5” Odex to 60 feet

  • HQ Core to 250 feet

  • NQ Core to 500 feet

  • Hole Diameters - 2” to 6”

Capacities are contingent on ground conditions




























  • Mast Length - 12 to 18 feet

  • Hydraulic Rod Clamp

  • Hydraulic Breakout Wrench

  • Head Off Holes for Free Rod Tripping - 15 foot

  • Comes Equipped with Coring Pumps

  • Man Portable
