Equipment | HT 200

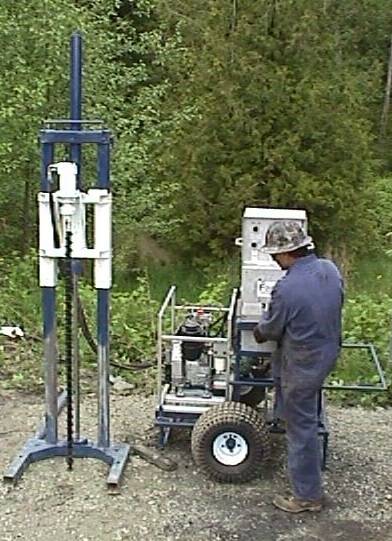

The HT-200 series drills were specifically designed and manufactured for use by Foundex, in order to meet our requirements for specialized projects and portability for more remote drilling locations.

The HT indicates helicopter transportable. As the unit is modular the drill can be easily disassembled and configured for transport by helicopter or it can be moved manually.

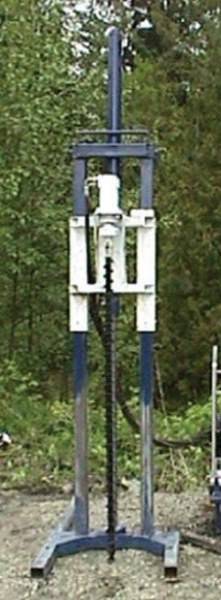

The HT-200 can be equipped with different rotary motors to permit different drilling applications. The unit is presently configured to rotate small diameter auger systems and conduct CPT testing.


Equipment Brief

  • Auger Drilling

  • CPT Pushing

  • Horizontal Drilling

  • Insitu Testing

  • Geotechnical Investigations

  • Environmental Monitoring Wells

  • Heliportable

  • Man Portable


Specifications

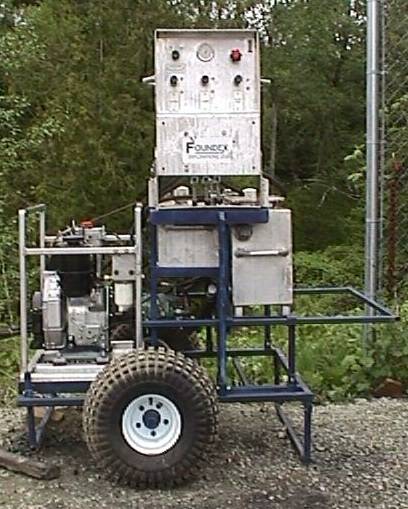

  • 20 HP Diesel Engine

  • Head Torque - 0 to 1,500 ft./lbs.

  • Head RPM - 0 to 200

  • Head Travel - 5 feet

  • Pull Down Pressure - 4,000 lbs.

  • Pullback Pressure - 6,000 lbs.

  • Mast Length - 8 feet


Optional Equipment

  • Coring Head 0 to 1,000 RPM

  • Hydraulic Rod Clamp

  • Hydraulic Breakout Wrench

  • Wireline Winch

  • Mud or Coring Pumps
